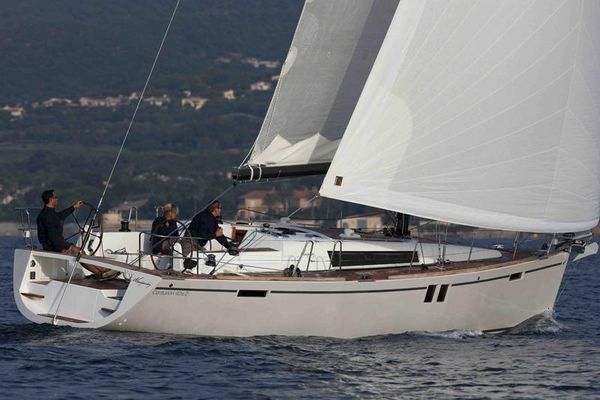

Wauquiez CENTURION 40S.2 - main image

2017 Wauquiez CENTURION 40S.2

Year 2017
Length 40'7 ft / 12.37 m

The heir of a long lineage of state-of-the-art cruiser-racers, the Centurion 40S2 has maintained all of his predecessors’ intrinsic qualities : a slender hull, a thoroughbred silhouette, sleek lines, a low, discreet roof, the cockpit and the deck dedicated both to manoeuvres and to relaxation, the quality of the rigging and the fittings, the nobility of the interiors where waxed teak prevails...

The Centurion 40S.2 is a great Wauquiez !

Specifications

Year built 2017
Category Sail
Length 40'7 ft / 12.37 m
Beam 12'7 ft / 3.83 m
Max. Draft 7'7 ft / 2.31 m
Construction Fiberglass
Keel Other
Drive Type Sail
Engines 1
Fuel Tanks 1
Fuel Tank Cap. 260.0 L
Water Tanks 1
Water Tank Cap. 480.0 L
Ballast 1,849.75 kg

Engine 1 Specifications

Make: Yanmar
Model: 54HP
Engine Power: 54hp
Type: Inboard
Year: 2016
Additional Description
  • Opium 39 is made of fiber glass, balsa and PVC foam sandwich with a vinylester core.
  • The hull, deck and structure are realised by vacuum injection tooptimise the mechanical characteristics of the materials used.
General Characteristics

• L.O.A ............................................................. 12,35 m / 40’6’’

• L.W.L ............................................................. 11,11 m / 38’6’’

• Maximum beam .............................................. 3,85 m / 12’7’’

• Standard draft ................................................... 2,30 m / 7’7’’

• Shoal draft ........................................................ 1,85 m / 6’1’’

• Light displacement .................... 8600 kg / 18960 lbs approx

• Ballast std Draft ........................... 2700 kg / 5950 lbs approx

• Ballast shoal Draft ....................... 2900 kg / 6390 lbs approx

• Berth .................................................................................... 6

• Design category (CE) ................................. A:7 / B:8 / C:10

• Fresh water capacity .................... 400 l / 105 US gal approx

• Fuel capacity .................................. 220 l / 58 US gal approx

• Engine ............................................. Yanmar 54CV / Saildrive

Sail Plan

• Main sail ..................................... 50,00 m2 approx / 538 sq.ft

• Genoa ........................................ 50,00 m2 approx / 538 sq.ft

• I ........................................................ 15.69 m / 51’6’’ approx

• J ............................................................. 4,12 m / 14’ approx

• P ........................................................ 15,00 m / 49’3’’ approx

• E .......................................................... 5,90 m / 19’4’’ approx

Construction

• GRP and balsa sandwich hull construction, using the infusion process for an optimum fibre / resin ratio.

• Protection from osmosis with bispheenolic resins for the external layers of the sandwich.

• The hull incorporates a one piece floors & stringers structure.

• Main floors are glassed to the hull in the keel attachment area for extra strength.

• Bulkheads glassed and / or bonded to the hull and deck for added stiffness.

• GRP & balsa sandwich deck construction, hull to deck joint via polyurethane adhesive and mechanical fastening.

• Composite rudder stock, with upper and lower rudder needle bearings.

• Lead keel with stainless steel bolts.

• Teak covered cockpit floor and seats, sidewalks and coachroof.

Rigging

• Keel-stepped Sparcraft® aluminium anodised mast, 2 swept back spreader levels, without running backstays.

• Stainless steel standing rigging.

• Backstay tension adjustment with hydraulic adjuster on split backstay.

• Headsail furling system (Facnor Flat deck® FD230).

• 2 stainless steel pushpits with closing gate.

• 1 stainless steel open type pulpit.

Deck Fittings

• Two 90 cm diameter covered Jefa® aluminium steering wheels.

• Harken® sheet tracks and ball bearing cars.

• Spinlock® (or similar) halyard rope clutches.

• 2 Harken® 50.2STA self tailing stainless steel primary winches.

• 2 Harken® 40.2STA self tailing stainless steel secondary winches.

• 2 Harken® 40.2STA self tailing stainless steel manoeuvring winches on coachroof. • 2 lockers in cockpit seats.

• Complete running rigging.

• 7 opening deck hatches (4 flush deck).

• 2 large fixed portholes alongside the coachroof coaming for saloon lighting, with 4 opening hatches for extra ventilation.

• 1 opening portlight in cockpit well for aft cabin.

• 2 dorade boxes on deck for extra saloon ventilation.

• 2 non opening portholes in hull (2/Aft cabin 4/Saloon 2/Front cabin).

• 2 lockers under helmsman seat.

• 1 cockpit lockers for 2 gas bottles and life-raft storage.

• Deck shower (fresh hot/cold water).

• Engine control throttle and engine control panel.

• 6 stainless steel mooring cleats (2 aft, 2 reclinable amidship, 2 fwd).

• Stainless steel bathing ladder.

• Double stainless steel lifelines & stanchions with opening gates to port, starboard, and on stern.

• 2 articulated padeyes in cockpit.

• Shore power cable and plug.

• Tri-white mast light.

Mooring Equipment

• Electric anchor windlass with separate chain and rope gipsies.

• Stainless steel bow fitting with double rollers.

• Stainless steel deck protection in front of anchor locker.

• Large anchor locker with mooring line attachment.

Accommodation

• Joinery in blonde teak veneered plywood, solid teak profiles and cold-moulded teak fiddles.

• Joinery hand sanded and beeswaxed (3 layers).

• Floorboards are plywood clad with high-pressure laminated veneer.

• Vinyl lining on sealing panels and topsides.

• LED direct and ambiance lights.

OWNER’S CABIN FORWARD

• Large “V” double berth with mattress, hanging locker, drawers under the bed, Vanity with mirror, numerous lockers and 3 opening hatches.

• 1 opening hatch with “skyscreen/flyscreen” store.

DOUBLE AFT CABIN TO STARBOARD

• Double bed with mattress. hanging locker, cupboard and storage space, lockers.

• 1 opening hatch and 1opening port for ventilation.

• 1 opening hatch with “skyscreen/flyscreen” store.

Companionway

• Companionway door sliding in deck.

• Stainless steel companionway stairs with curved teak steps, non skid protection.

Bathroom

• Bathroom to port of companionway with WC. washbasin with black water tank, cupboard with mirror, storage space, accessories. Fully enclosed stall shower with wet locker and waterproof storage compartments and opening hatch.

Saloon

• 2 part saloon table with settee / sea berth on each side (double density cushion foam), lockers under seats, cupboards and lockers alongside the hull.

• Large opening hatch with “skyscreen/flyscreen” store.

• Teak handrails on roof.

Chart Table

• Large chart table to port with chart stowage, book shelf and lockers, electric panel and console for navigation instruments.

• Curved chart table seat with cushion and backrest (storage under seat).

Galley

• “L” shaped galley to starboard of companionway.

• Zinc or synthetic marble working space, numerous lockers and drawers, exclusive crockery for 6.

• Gimballed stainless steel 2 burner stove with oven (cover usable as a tray).

• Double stainless steel sink with hot & cold fresh water.

• 12 V side loading refrigerator.

• Icebox (negative cold in option).

• Opening port and opening hatch with “skyscreen/ flyscreen” above galley

Engine Equipment

• YANMAR 54Hp Saildrive diesel engine.

• 14 volt 80 Amp/h alternator.

• Polyethylene 220 litres (58 US gal.) fuel tank with gauge.

• 3 bladed fixed propeller.

• Complete engine compartment insulation with non flammable 40 m/m foam.

• Electric (30 l/min.) and manual bilge pumps.

• Engine access via companionway, aft cabin and shower compartment.

Electrics

• 12 volt service batteries (2x 135 Amp/h).

• 12 volt engine optima battery, 55Amp.

• 40 Amp automatic battery charger with repartitor.

• Main electric panel with 12/220 or 12/110 volt functions.

• LED lighting integrated in ceilings and reading lights at head of berths.

Fresh / Black water

• 2 polyethylene fresh water tanks with electric gauge (Total fresh water capacity 420 litres approx.).

• 40 litres hot water tank with heating from engine or electric 220 or 110 volt coil.

• Pressurised freshwater system with 12 volt pump and expansion tank.

• 50 litres black waters holding tank.

Comfort Equipment

• Stereo radio / CD player.

• 2 waterproof speakers in cockpit.
